Industrial Electrical Sockets: Durable and Reliable Power Solutions

Durable and Reliable Power Solutions industrial sockets with electrical interlock

Palazzoli's interlocked socket-outlets and industrial rotary switches are ideal for standard use and for use in heavy-duty applications. The range of interlocked sockets is divided into: Multiline electrical is Palazzoli distributor in saudi arabia .

  • Compact horizontal and vertical interlocked socket-outlets

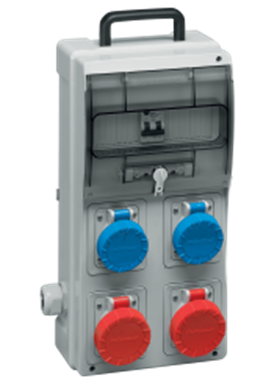

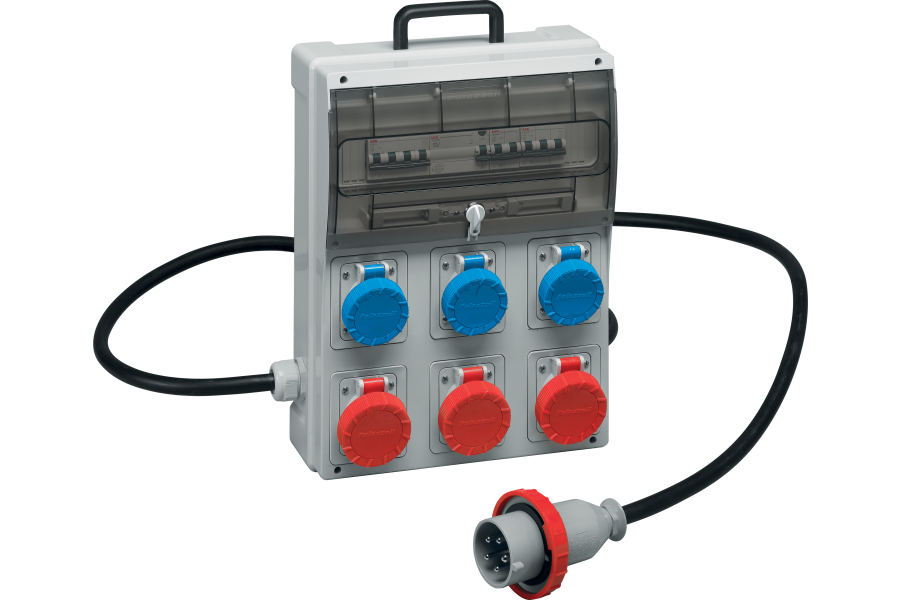

  • Mobile socket-outlets with rotary switch

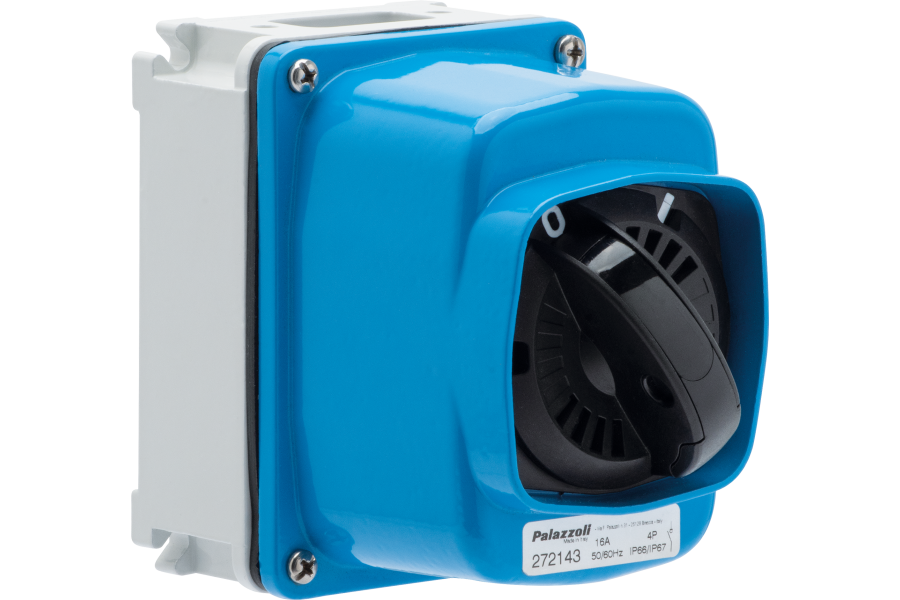

  • Panel and wall-mounted socket-outlets with rotary switch
  • High amperage socket-outlets with electrical interlock

TAIS

The construction materials of Palazzoli interlocked socket-outlets are: thermoplastic, reinforced technopolymer, Palazzoli thermosetting resin and aluminium. This guarantees: safety performance and high resistance.

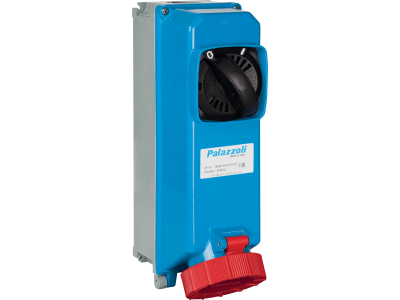

TAIS industrial low voltage interlocked socket-outlets are made in Palazzoli thermosetting GRP for heavy-duty applications, that comply with the IEC/EN 60309-1, IEC/EN 60309-2 and IEC/EN 60309-4 standards.

The system includes versions from 16A to 125A, with or without fuses, with MCB or with DIN rail that can be fitted with modular devices and with electrical interlock.

The interlock system is made with a steel bracket and the switch disconnector is certified to the AC3-AC23A category at rated current.

ALUPRES

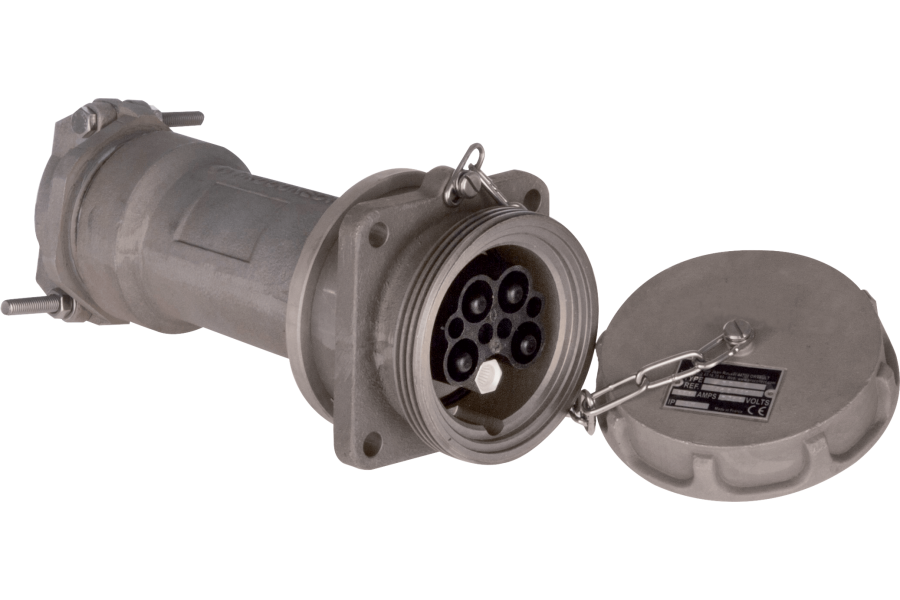

Interlocked socket-outlets (M125) in marine-grade aluminium with fuse-holder for wall-mounting IP66/IP67/IP69

ALUPRES high-resistance interlocked socket-outlets are made of aluminium alloy. The casing is treated with ecological anticorrosion passivation with fluoro-zirconium and finished with hot polymerised non-toxic polyester paint.
The “heart” of ALUPRES is an isolator switch with the AC3-AC23A category at rated current that allows a safe operation even with highly inductive loads.
The handle is padlockable in positions 0 and 1 to prevent unauthorised access.

ALUMEX

250-320A - 400A sockets in steel for high amperages with electric interlock and MCCB for wall-mounting 50-60Hz IP65

ALUMAX low voltage switched industrial sockets with electrical interlock are a range of products in 15/10 steel sheet, finished with hot polymerised nontoxic polyester paint, equipped with an aluminium alloy socket for heavy-duty applications, from 250A up to 400A, with IP65 protection rating.

The coupling system of receptacles and plugs makes use of the Easy Contact technology for maximum contact performance over time and ensures easier connection and disconnection operations.



TAIS-EX

TAIS-EX watertight wall-mounted interlocked socket-outlets with housing in antistatic thermosetting GRP are designed for use in explosion hazardous areas, as defined in the ATEX Directive 2014/34/EU.


The cover is attached to the body by means of stainless steel screws, while the sealing is ensured by a reinforced gasket in non-ageing elastomer which ensures an IP66 protection rating.

The interlock mechanism is made of metal, and the operation handle is category AC23A-AC3 at rated current with conditional short-circuit current ≥ 10kA.
