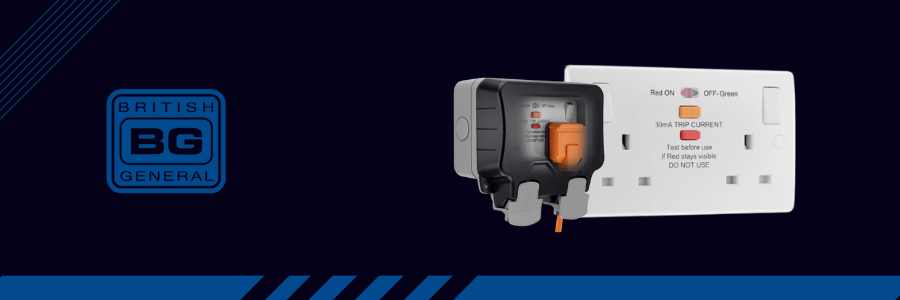

BG Electrical Nexus Moulded 822RCD 2 Gang 13 Amp RCD Socket White

Type A RCD Protection •

Maximum load 3120 watts 240V A

• 30 mA trip speed 40 ms

• Latching type

• Terminal capacity 3 x 2.5mm², 2 x 4.0mm² & 1 x 6.0mm²

• Manufactured to BS 7288:2016

• Minimum mounting box depth – 35mm

• 855ARCD – Removable flex outlet

• 10mm spacer provided for shallow boxe

Product Details –

Find Full descriptive details of RCD Socket 13A 2G DP Switched 3″ X 6″ 822RCD BG

Technical Description

Introducing the BG Nexus 822RCD-01 13 Amp RCD Switched Socket Outlet in a sleek white moulded finish. This socket is designed to seamlessly blend with any decor, making it suitable for both domestic and commercial applications. It features an integrated RCD that effectively prevents the leakage of electrical current.

Key Features of the 2 Gang 13A RCD Switched Socket Outlet White Moulded:

• Sleek and slim design with softly rounded edges in a white moulded finish
• Faultless appearance ensured with screw covers
• Simple installation process with included fixing screws and installation instructions

Specifications of the 2 Gang 13A RCD Switched Socket Outlet White Moulded:

• Maximum load of 3120 watts at 240V AC
• Trip speed of 30 mA in just 40 ms
• Manufactured according to BS 7288:1990 standards
• Includes a 10mm spacer for shallow boxes
• Minimum mounting box depth required is 35mm
• Conforms to standards: BS EN 60669-2-1, BS 7288:1990
• Rated for 13A
• Maximum Load: 3120 Watts, 240V AC
• RCD Rating: 30mA, Trip Speed: 40 ms
• RCD Type: Latching Type
• Terminal Capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
• Mounting Box Depth (minimum): 35mm, with a 10mm spacer provided for shallower boxes

BG Electrical 822RCD-01 2 Gang 13A Type A RCD Socket White
